Configuration

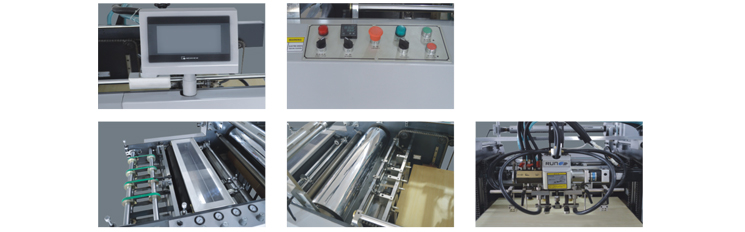

·Stream feeder, with automatic sheeting and jogger delivery.
·Oil free vacuum pump on stream feeder with both separating and forwarding suckers.
·Servo-controlled pump on stream feeder with both separating and forwarding sucker.
·Colour touch screen interface, programable for sheet size and overlap.
·Oil heated for stable and precise PID electronic control of temperature.
·Film slitting and perforating system on feed roll.
·Sheet decurling device for production of flat laminated sheets.
·Strong pneumatic laminating pressure.
·Pneumatic film tension brake.
·Swing-away film loading onto airshaft.
·Whole machine is easily moved by pallet trolly for convenient storage in limited spaces.
Technical Parameters
Model YFMA-520
Max laminating size 540x760mm
Min laminating size 240x290mm
Max speed 30m/min
Laminating temperature
Temperature -130℃
Paper weight 127-450g
Power 11kw
Total Weight 1000kg
Overall Dimensions 3000x1450x1650mm
